PTN06-B50HB20

PTN06-B50HB20
PTN06-B50HB20 Alternate View

PTN06-B50HB20

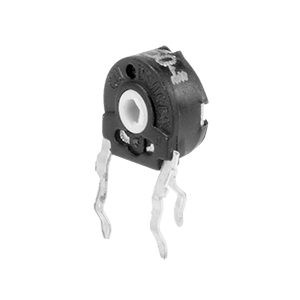

6 mm, 50 kΩ, Horizontal, Linear, Hexagonal Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 6
Termination Crimped Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 50
Resistance Ω 50
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 235
Rotor Hexagonal
Shaft Style Shaftless
Series PTN06
