PTN06-B500HB20

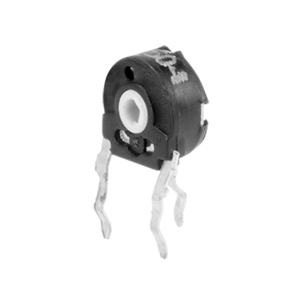

6 mm, 500 kΩ, Horizontal, Linear, Hexagonal Rotor Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 6
Termination Crimped Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 500
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 235
Rotor Hexagonal
Shaft Style Shaftless
Series PTN06
