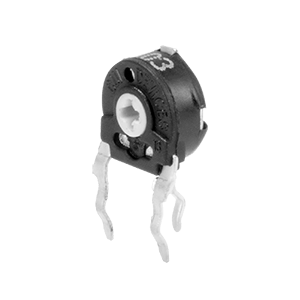

PTN06-B05CC20

PTN06-B05CC20
PTN06-B05CC20 Alternate View

PTN06-B05CC20

6 mm, 5 kΩ, Horizontal, Reverse Logarithmic, Cross Slot Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 6
Termination Crimped Pc Pins
Taper Reverse Logarithmic
Orientation Horizontal
Resistance (kΩ) 5
Resistance Ω 5
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 235
Rotor Cross Slot
Shaft Style Shaftless
Series PTN06
