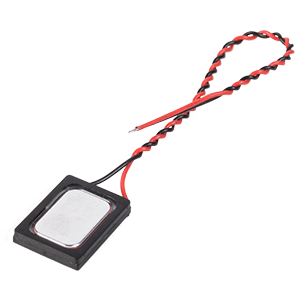

CDS-15118B-L100
Recommended Replacement
CMS-15118D-L100
15 x 11 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Speaker
15 x 11 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, Mylar Cone
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 86 (0.5 W / 0.1 m) |
|
| Max Input (W) | 1 |
|
| Nominal Input (W) | 0.7 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 500 |
|
| Cone Type | Mylar |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 15 x 11 x 3 |
|
| Dimensions LxWxH (in) | 0.591 x 0.433 x 0.118 |
|
| Mounting Style | Wire Leads |
|
