CS-3224

CS-3224

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

Recommended Replacement

CS-3624

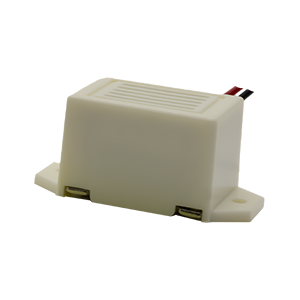

CS-3624 23.3 x 17.0 mm, 20~28 Vdc, Panel Mount w/ Wire Leads, Mounting Tabs, Solid State Audio Indicator Buzzer

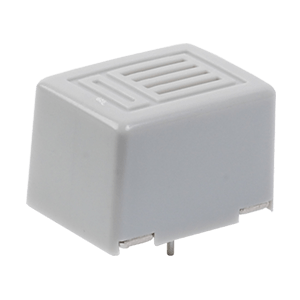

22.5 x 16.7 mm, 20~28 Vdc, Panel Mount, 2 Pin, Solid State Audio Indicator Buzzer

Specifications

Type Description
Select
Driving Circuit Yes
Input Type Vdc
Rated Voltage 24
Sound Pressure (dB) 76
Mounting Style Through Hole
Curr. Consumption (mA) 20
Shape Rectangular
Dimensions LxWxH (mm) 22.5 x 16.7 x 15.5
Dimensions LxWxH (in) 0.89 x 0.66 x 0.61
Washable No
