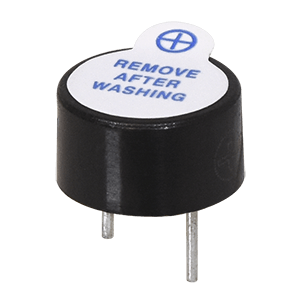

CMI-9605-0580T
9.6 mm, 5 Vdc, 80 dB, Through Hole, Driving Circuit, Magnetic Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Rated Voltage | 5 |
|
| Sound Pressure (dB) | 80 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 30 |
|
| Rated Frequency (Hz) | 2700 |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 9.6 x 9.6 x 5 |
|
| Illumination | No |
|
| Dimensions LxWxH (in) | 0.38 x 0.38 x 0.2 |
|
| Washable | No |
|
