GF1003

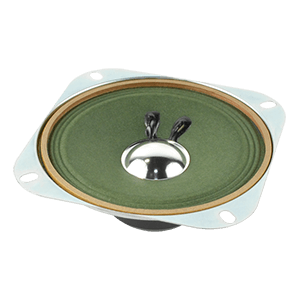

GF1003 Speaker Profile View
GF1003 Speaker Bottom View

GF1003

100 mm, Square Frame, 3.0 W, 8 Ohm, Ferrite Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 94 (1 W / 0.5 m)
Max Input (W) 5
Nominal Input (W) 3
Impedance (Ohms) 8
Resonance Freq. (Hz) 160
Cone Type Paper
Magnet Type Ferrite
Frame Shape Square
Dimensions LxWxH (mm) 100 x 100 x 36.2
Dimensions LxWxH (in) 3.94 x 3.94 x 1.43
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet
