GA0876M

GA0876M

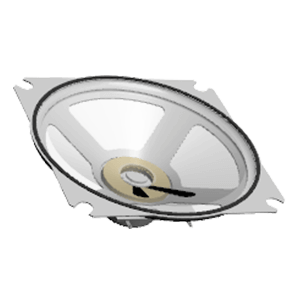

87 mm, Square Frame, 1.0 W, 8 Ohm, AlNiCo Magnet, PET Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 85 (1 W / 0.5 m)
Max Input (W) 2
Nominal Input (W) 1
Impedance (Ohms) 8
Resonance Freq. (Hz) 260
Cone Type PET
Magnet Type Alnico
Frame Shape Square
Dimensions LxWxH (mm) 87 x 87 x 32.5
Dimensions LxWxH (in) 3.43 x 3.43 x 1.28
Mounting Style Solder Eyelet(s)
