GA0506

GA0506

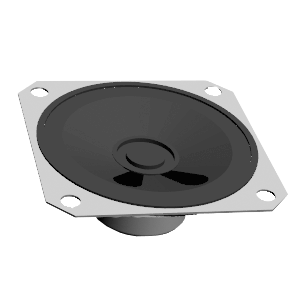

50 mm, Square Frame, 0.25 W, 8 Ohm, AlNiCo Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 88 (0.25 W / 0.5 m)
Max Input (W) 0.5
Nominal Input (W) 0.25
Impedance (Ohms) 8
Resonance Freq. (Hz) 430
Cone Type Paper
Dimensions LxWxH (in) 1.969 x 1.969 x 0.728
Frame Shape Square
Dimensions LxWxH (mm) 50 x 50 x 18.5

Technical Docs

Datasheet 3D Model
