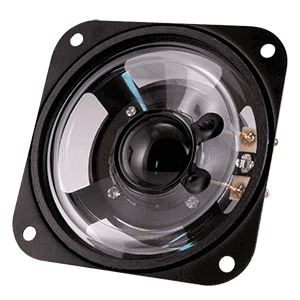

Specifications
Type | Description | |
---|---|---|
S.P. Level (dB) | 95 (5 W / 0.5 m) |
|
Nominal Input (W) | 5 |
|
Max Input (W) | 8 |
|
Impedance (Ohms) | 8 |
|
Resonance Freq. (Hz) | 550 |
|
Cone Type | PET |
|
Magnet Type | Ferrite |
|
Mounting Style | Solder Eyelet(s) |
|
Frame Shape | Square |
|
Dimensions LxWxH (in) | 3.43 x 3.43 x 1.24 |
|
Dimensions LxWxH (mm) | 87 x 87 x 31.5 |
|
Enclosed | No |
|
