CSS-13050-204

CSS-13050-204
CSS-13050-204 Alternate View
CSS-13050-204 Alternate View

CSS-13050-204

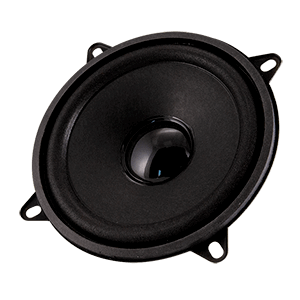

129.5 mm, Round Frame, 20 W, 4 Ohm, Ferrite Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 103 (20 W / 0.5 m)
Nominal Input (W) 20
Max Input (W) 25
Impedance (Ohms) 4
Resonance Freq. (Hz) 130
Cone Type Paper
Magnet Type Ferrite
Mounting Style Solder Eyelet(s)
Frame Shape Round
Dimensions LxWxH (in) 5.09 x 5.09 x 1.97
Dimensions LxWxH (mm) 129.5 x 129.5 x 50
Enclosed No

Technical Docs

Datasheet 3D Model
