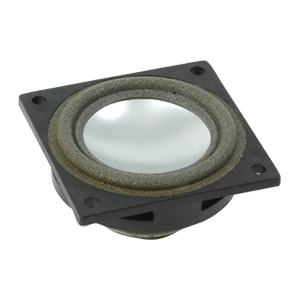

CMS0461KLX
46 mm x 46 mm, Square Frame, 2.0 W, 8 Ohm, Neodymium Magnet, Paper Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 88 (1 W / 0.5 m) |
|
| Max Input (W) | 4 |
|
| Nominal Input (W) | 2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 160 |
|
| Cone Type | Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (mm) | 46 x 46 x 22.8 |
|
| Dimensions LxWxH (in) | 1.81 x 1.81 x 0.9 |
|
| Mounting Style | Solder Eyelet(s) |
|
