CDS-575719-0258E

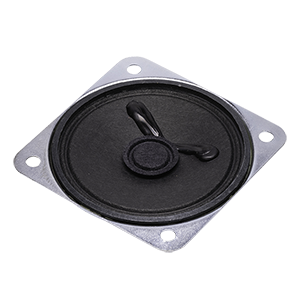

57 x 19.5 mm, Square Frame, .25 W, 8 Ohm, Neodymium Magnet, Paper Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 99 (0.25 W / 0.1 m) |
|
| Nominal Input (W) | 0.25 |
|
| Max Input (W) | 0.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 500 |
|
| Cone Type | Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Square |
|
| Mounting Style | Solder Eyelet(s) |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 2.24 x 2.24 x 0.77 |
|
| Dimensions LxWxH (mm) | 57 x 57 x 19.5 |
|
