CDS-5085-32-SP

CDS-5085-32-SP

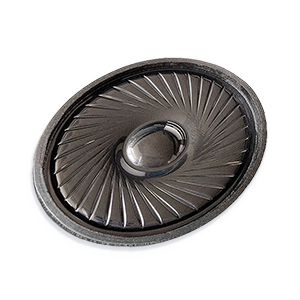

50 mm, Round Frame, 0.5 W, 32 Ohm, Neodymium Magnet, PET Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 92 (0.5 W / 0.1 m)
Nominal Input (W) 0.5
Impedance (Ohms) 32
Resonance Freq. (Hz) 400
Cone Type PET
Magnet Type Nd-Fe-B
Frame Shape Round
Mounting Style Solder Pads
Enclosed No
Dimensions LxWxH (in) 1.97 x 1.97 x 0.33
Dimensions LxWxH (mm) 50 x 50 x 8.5

Technical Docs

Datasheet 3D Model
