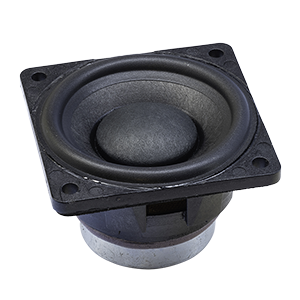

CDS-4837-54SP
48 x 37.6 mm, Square Frame, 5 W, 4 Ohm, Neodymium Magnet, PU & Paper Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 84 (1 W / 1 m) |
|
| Nominal Input (W) | 5 |
|
| Max Input (W) | 6 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 170 |
|
| Cone Type | PU and Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Square |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 1.9 x 1.9 x 1.5 |
|
| Dimensions LxWxH (mm) | 48 x 48 x 37.6 |
|
| Series | CDS-4837-54XX |
|
