CDS-4553-16-SP

CDS-4553-16-SP

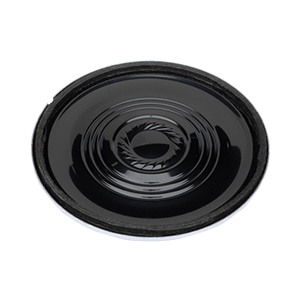

45 mm, Round Frame, 1 W, 16 Ohm, Neodymium Magnet, PET Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 90 (1 W / 0.1 m)
Nominal Input (W) 1
Impedance (Ohms) 16
Resonance Freq. (Hz) 500
Cone Type PET
Magnet Type Nd-Fe-B
Frame Shape Round
Mounting Style Solder Pads
Enclosed No
Dimensions LxWxH (in) 1.77 x 1.77 x 0.21
Dimensions LxWxH (mm) 45 x 45 x 5.3

Technical Docs

Datasheet 3D Model
