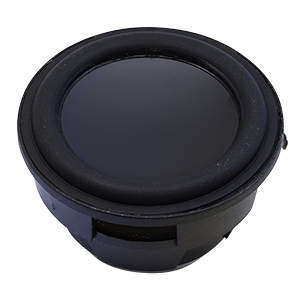

CDS-4224-84SP
42 x 26.9 mm, Round Frame, 8 W, 4 Ohm, Neodymium Magnet, Pu & Ti Cone Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 83.5 (1 W / 0.5 m) |
|
| Nominal Input (W) | 8 |
|
| Max Input (W) | 10 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 220 |
|
| Cone Type | PU and Ti |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Mounting Style | Solder Pads |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 1.65 x 1.65 x 1.059 |
|
| Dimensions LxWxH (mm) | 42 x 42 x 26.9 |
|
