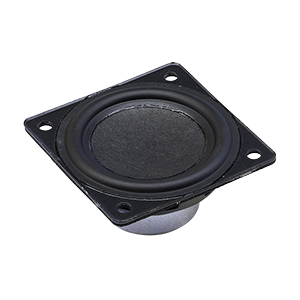

CDS-4221-44SP
42.5 x 21.6 mm, Square Frame, 4 W, 4 Ohm, Neodymium Magnet, PEI Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 83 (1 W / 1 m) |
|
| Nominal Input (W) | 4 |
|
| Max Input (W) | 5 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 230 |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Square |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 1.7 x 1.7 x 0.85 |
|
| Dimensions LxWxH (mm) | 42.5 x 42.5 x 21.6 |
|
| Series | CDS-4221-44XX |
|
