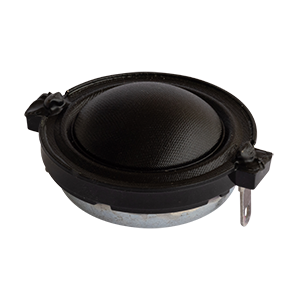

CTW-3015-104SE
30.5 x 14.7 mm, Round Frame, 10 W, 4 Ohm, Neodymium Magnet, Silk Cone, Tweeter
Specifications
| Type | Description | |
|---|---|---|
| Nominal Input (W) | 10 |
|
| Max Input (W) | 12 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 1500 |
|
| Cone Type | Silk |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Mounting Style | Solder Eyelet(s) |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 1.2 x 1.2 x 0.58 |
|
| Dimensions LxWxH (mm) | 30.5 x 30.5 x 14.7 |
|
| Special Features | Tweeter |
|
