CSS-40408N

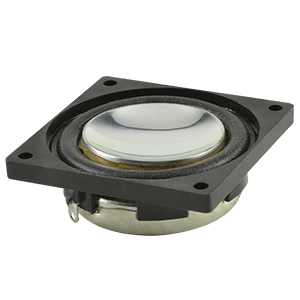

40.1 mm x 40.1 mm, Square Frame, 5 W, 8 Ohm, Neodymium Magnet, PET + Foam Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 100 (1 W / 0.1 m) |
|
| Nominal Input (W) | 5 |
|
| Max Input (W) | 8 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 440 |
|
| Cone Type | PET + Foam |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (in) | 1.58 x 1.58 x 0.57 |
|
| Dimensions LxWxH (mm) | 40.1 x 40.1 x 14.5 |
|
| Enclosed | No |
|
