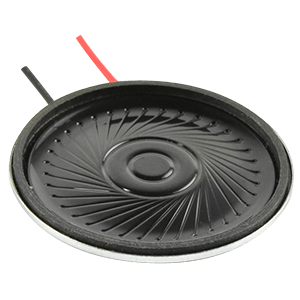

CMS-40558N-L152B
40 mm x 5.5 mm, Round Frame, 0.5 W, 8 Ohm, Neodymium Magnet, PEI Cone, Wire Leads with Connector, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 90 (0.1 W / 0.1 m) |
|
| Nominal Input (W) | 0.5 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 500 |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Wire Leads with Connector |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (in) | 1.57 x 1.57 x 0.22 |
|
| Dimensions LxWxH (mm) | 40 x 40 x 5.5 |
|
| Series | CMS-40558N-L152 |
|
