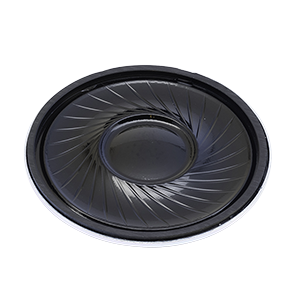

CMS-4052-0550SP
40 x 5.2 mm, Round Frame, .5 W, 50 Ohm, Neodymium Magnet, PEN Cone Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 90 (1 W / 0.5 m) |
|
| Nominal Input (W) | 0.5 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 50 |
|
| Resonance Freq. (Hz) | 350 |
|
| Cone Type | PEN |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Round |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 1.57 x 1.57 x 0.2 |
|
| Dimensions LxWxH (mm) | 40 x 40 x 5.2 |
|
