CMS-402057-18SP

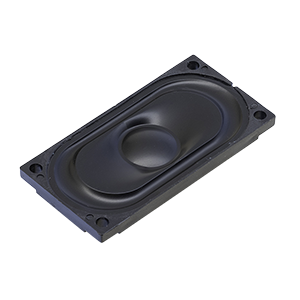

40 x 5.7 mm, Rectangular Frame, 1 W, 8 Ohm, Neodymium Magnet, PEN Cone Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 83 (1 W / 0.5 m) |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 520 |
|
| Cone Type | PEN |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Rectangular |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 1.6 x 0.79 x 0.22 |
|
| Dimensions LxWxH (mm) | 40 x 20 x 5.7 |
|
