CMS-3648-158SP

CMS-3648-158SP
CMS-3648-158SP Alternate View
 CMS-3648-158SP Alternate View

CMS-3648-158SP

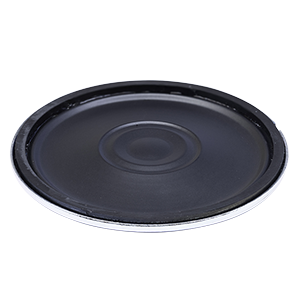

36 x 4.8 mm, Round Frame, 1.5 W, 8 Ohm, Neodymium Magnet, PEI Cone, IPX5 Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 92 (1 W / 0.5 m)
Nominal Input (W) 1.5
Max Input (W) 2
Impedance (Ohms) 8
Resonance Freq. (Hz) 600
Cone Type PEI
Magnet Type Nd-Fe-B
Frame Shape Round
Mounting Style Solder Pads
IP Rating IPX5
Enclosed No
Dimensions LxWxH (in) 1.4 x 1.4 x 0.19
Dimensions LxWxH (mm) 36 x 36 x 4.8

Technical Docs

Datasheet
