CMS-2594-24SP

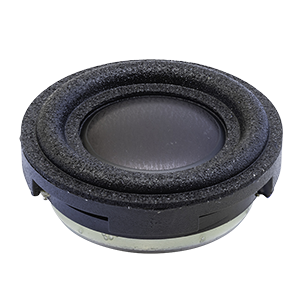

25 x 9.4 mm, Round Frame, 2 W, 4 Ohm, Neodymium Magnet, Aluminum Cone Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 81 (1 W / 0.5 m) |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 3.5 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 250 |
|
| Cone Type | Aluminum |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Round |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 0.98 x 0.98 x 0.37 |
|
| Dimensions LxWxH (mm) | 25 x 25 x 9.4 |
|
