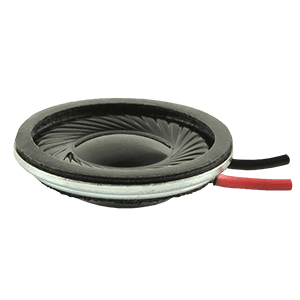

CMS-23558N-L152A
23 mm, Round Frame, 1 W, 8 Ohm, Neodymium Magnet, PEI Cone, Wire Leads with Connector, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 94 (1 W / 0.1 m) |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 550 |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Wire Leads with Connector |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (in) | 0.91 x 0.91 x 0.22 |
|
| Dimensions LxWxH (mm) | 23 x 23 x 5.5 |
|
| Series | CMS-23558N-L152 |
|
