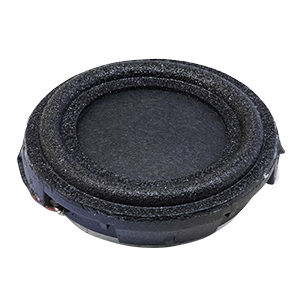

CMS-1852-24SP
18 x 5.2 mm, Round Frame, 2 W, 4 Ohm, Neodymium Magnet, Foam & Paper Cone Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 80.3 (2 W / 0.5 m) |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 2.5 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 500 |
|
| Cone Type | Foam and Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Mounting Style | Solder Pads |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 0.7 x 0.7 x 0.2 |
|
| Dimensions LxWxH (mm) | 18 x 18 x 5.2 |
|
