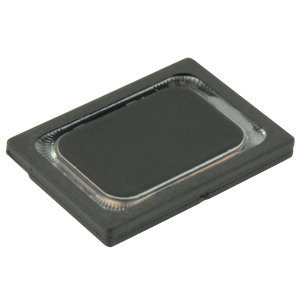

CMS-181325-078L100A-67
18 x 13 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Wire Leads with Connector, IP67, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 93 (0.7 W / 0.1 m) |
|
| Nominal Input (W) | 0.7 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 1100 |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Mounting Style | Wire Leads with Connector |
|
| IP Rating | IP67 |
|
| Dimensions LxWxH (in) | 0.71 x 0.51 x 0.1 |
|
| Dimensions LxWxH (mm) | 18 x 13 x 2.5 |
|
| Series | CMS-181325-078X-67 |
|
