CMS-16093-078L100-67

CMS-16093-078X-67 Spring Contacts
CMS-16093-078X-67 Solder Pads
CMS-16093-078X-67 Wire Leads

CMS-16093-078L100-67

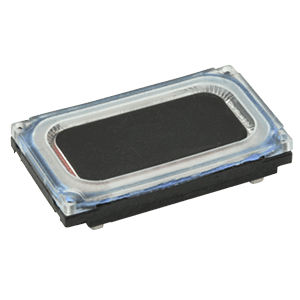

16 x 09 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Wire Leads, IP67, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 91 (0.7 W / 0.1 m)
Nominal Input (W) 0.7
Max Input (W) 1
Impedance (Ohms) 8
Resonance Freq. (Hz) 550
Cone Type PEEK
Magnet Type Nd-Fe-B
Frame Shape Rectangular
IP Rating IP67
Dimensions LxWxH (in) 0.63 x 0.35 x 0.12
Dimensions LxWxH (mm) 16 x 9 x 3
Mounting Style Wire Leads
Series CMS-16093-078X-67

Technical Docs

Datasheet 3D Model
