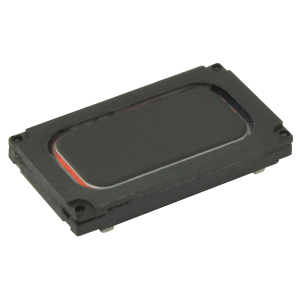

CMS-160925-078S
16 x 9 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Spring Contacts, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 90 (0.7 W / 0.1 m) |
|
| Nominal Input (W) | 0.7 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 550 |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (in) | 0.63 x 0.35 x 0.1 |
|
| Dimensions LxWxH (mm) | 16 x 9 x 2.5 |
|
| Mounting Style | Spring Contact |
|
| Series | CMS-160925-078X |
|
