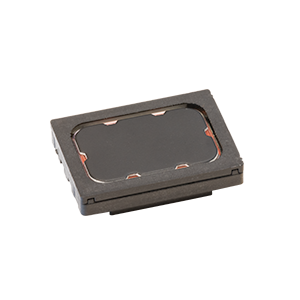

CMS-151135-18SP-X8
15 x 11 mm, Rectangular Frame, 1 W, 8 Ohm, Neodymium Magnet, Peek Cone, Solder Pad, IPX8, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 95 (2.83 W / 0.1 m) |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.3 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 950 |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Mounting Style | Solder Pads |
|
| IP Rating | IPX8 |
|
| Enclosed | No |
|
| Dimensions LxWxH (in) | 0.59 x 0.43 x 0.14 |
|
| Dimensions LxWxH (mm) | 15 x 11 x 3.5 |
|
