CMS-15113-076S

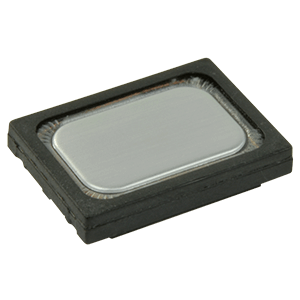

speaker, 15 x 11 mm, 3 mm deep, PEEK, Nd-Fe-B, .7 W, 6 ohm, 600 Hz, spring contacts
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 92 (0.7 W / 0.1 m) |
|
| Nominal Input (W) | 0.7 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 6 |
|
| Resonance Freq. (Hz) | 600 |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (in) | 0.59 x 0.43 x 0.12 |
|
| Dimensions LxWxH (mm) | 15 x 11 x 3 |
|
| Mounting Style | Spring Contact |
|
| Series | CMS-15113-076X |
|
