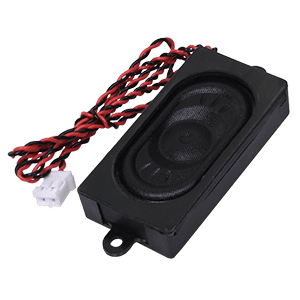

CES-39209-28PM
39 x 20 mm, Enclosed, Rectangular Case, 2 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Wire Leads with Connector, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 97 (2 W / 0.1 m) |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 2.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 1200 |
|
| Cone Type | Cloth |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Enclosed | Yes |
|
| Mounting Style | Wire Leads with Connector |
|
| Dimensions LxWxH (in) | 1.54 x 0.79 x 0.37 |
|
| Dimensions LxWxH (mm) | 39 x 20 x 9.3 |
|
