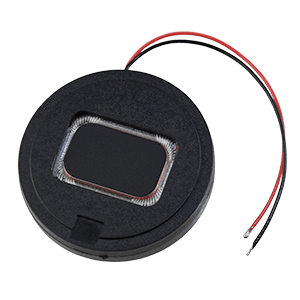

CES-2704-088L050
27 x 4.9 mm, Enclosed, Round Case, 0.8 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Wire Leads, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 90 (0.8 W / 0.1 m) |
|
| Nominal Input (W) | 0.8 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 850 |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Mounting Style | Wire Leads |
|
| Enclosed | Yes |
|
| Dimensions LxWxH (in) | 1.06 x 1.06 x 0.19 |
|
| Dimensions LxWxH (mm) | 27 x 27 x 4.9 |
|
| Series | CES-2704-088L050 |
|
