CES-26138-16L030

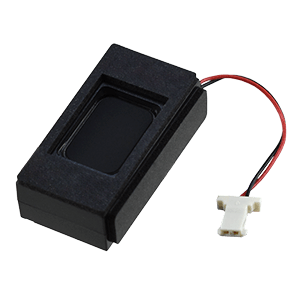

26 x 13 mm, Enclosed, Rectangular Case, 1.2 W, 6 Ohm, Neodymium Magnet, PEEK Cone, Wire Leads with Connector, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 95 (1.2 W / 0.1 m) |
|
| Nominal Input (W) | 1.2 |
|
| Max Input (W) | 1.5 |
|
| Impedance (Ohms) | 6 |
|
| Resonance Freq. (Hz) | 1000 |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Mounting Style | Wire Leads with Connector |
|
| Enclosed | Yes |
|
| Dimensions LxWxH (in) | 1.02 x 0.51 x 0.31 |
|
| Dimensions LxWxH (mm) | 26 x 13 x 8 |
|
