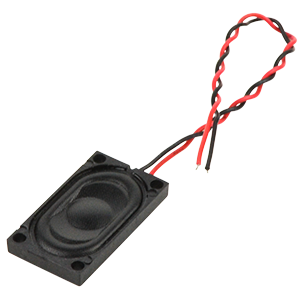

CDS-25148-L100
25 x 14 mm, Rectangular Frame, 1.5 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 94 (1.5 W / 0.1 m) |
|
| Max Input (W) | 2 |
|
| Nominal Input (W) | 1.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 750 |
|
| Cone Type | Cloth |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 25 x 14 x 4.5 |
|
| Dimensions LxWxH (in) | 0.984 x 0.551 x 0.177 |
|
| Mounting Style | Wire Leads |
|
