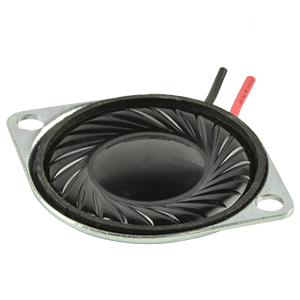

CMS-28528N-L152A
28 mm, Round Frame, 2 W, 8 Ohm, Neodymium Magnet, PEI Cone, Wire Leads with Connector, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 99 (1 W / 0.1 m) |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 3 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 750 |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Wire Leads with Connector |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (in) | 1.1 x 1.1 x 0.2 |
|
| Dimensions LxWxH (mm) | 28 x 28 x 5.2 |
|
| Series | CMS-28528N-L152 |
|
