CPT-2510-28-85T

CPT-2510-28-85T

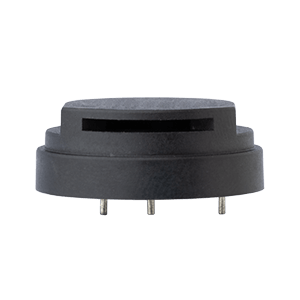

25.2 mm, 24 Vdc, 85 dB, Through Hole, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Rated Voltage 24
Input Type Vdc
Sound Pressure (dB) 85
Mounting Style Through Hole
Curr. Consumption (mA) 27
Shape Round
Dimensions LxWxH (in) 0.99 x 0.99 x 0.37
Washable No
Dimensions LxWxH (mm) 25.2 x 25.2 x 9.5
IP Rating No

Buy from Same Sky
