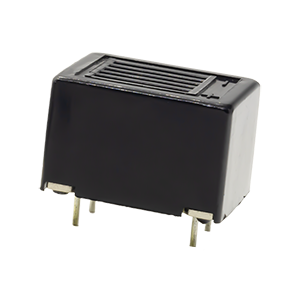

CS-8412
22.5 x 16.7 mm, 8 ~16 Vdc, Through Hole, 4 Pin, Solid State Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 77 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 30 |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 22.5 x 16.7 x 15.5 |
|
| Dimensions LxWxH (in) | 0.89 x 0.66 x 0.61 |
|
| Washable | No |
|
