CS-8406

CS-8406
CS-8406 Alternate View

CS-8406

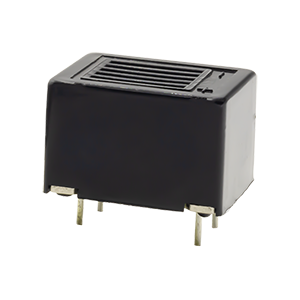

22.5 x 16.7 mm, 4 ~8 Vdc, Through Hole, 4 Pin, Solid State Audio Indicator Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit Yes
Illumination No
Input Type Vdc
Rated Voltage 6
Sound Pressure (dB) 78
Mounting Style Through Hole
Curr. Consumption (mA) 25
Operating Temp Range (°C) -30 ~ 70
Shape Rectangular
Dimensions LxWxH (mm) 22.5 x 16.7 x 15.5
Dimensions LxWxH (in) 0.89 x 0.66 x 0.61
Washable No
