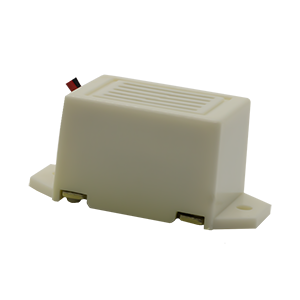

CS-3612
23.3 x 17.0 mm, 8~16 Vdc, Panel Mount w/ Wire Leads, Mounting Tabs, Solid State Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 82 |
|
| Mounting Style | Panel Mount |
|
| Curr. Consumption (mA) | 35 |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 23.3 x 17 x 15.3 |
|
| Dimensions LxWxH (in) | 0.91 x 0.67 x 0.6 |
|
| Washable | No |
|
