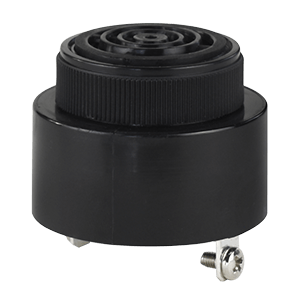

CPI-4232-72FST
42.5 mm, 12 Vdc, 72 dB, Screw Terminal, Driving Circuit, Fast Pulse Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Rated Voltage | 12 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 72 |
|
| Mounting Style | Screw Terminals |
|
| Curr. Consumption (mA) | 6 |
|
| Rated Frequency (Hz) | 2800 |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | No |
|
| Dimensions LxWxH (in) | 1.67 x 1.67 x 1.28 |
|
| IP Rating | No |
|
| Dimensions LxWxH (mm) | 42.5 x 42.5 x 32.5 |
|
