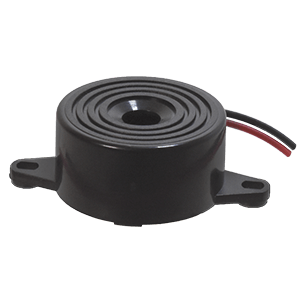

CPI-2212-85PM
22.5 mm, 12 Vdc, 85 dB, Panel Mount, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Panel Mount |
|
| Curr. Consumption (mA) | 12 |
|
| Rated Frequency (Hz) | 3300 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 22.5 x 22.5 x 12 |
|
| Illumination | No |
|
| Dimensions LxWxH (in) | 0.89 x 0.89 x 0.47 |
|
| Washable | No |
|
| IP Rating | No |
|
