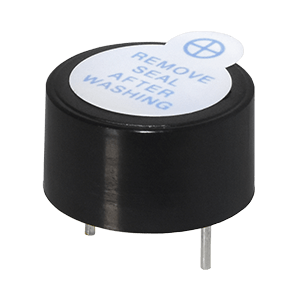

CPI-1375IC-80T

CPI-1375IC-80T
CPI-1375IC-80T Alternate View

CPI-1375IC-80T

13.8 mm, 12 Vdc, 88 dB, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer

The CPI-1375IC-80T series is a piezo indicator buzzer with a built-in driving circuit that features a rated frequency of 4000 Hz at 12 Vdc and tight frequency tolerances of ±100 Hz. This narrow frequency range gives designers added frequency stability that is not affected by temperature or voltage, while providing more consistent tones and sounds in their given application. Offering an SPL of 88 dB at 10 cm, this piezo indicator buzzer is a highly reliable solution for medical, smart home, and security applications that require tone consistency.

Datasheet

Specifications

Type Description
Select
Driving Circuit Yes
Rated Voltage 12
Input Type Vdc
Sound Pressure (dB) 88
Mounting Style Through Hole
Curr. Consumption (mA) 7
Rated Frequency (Hz) 4000
Operating Temp Range (°C) -30 ~ 70
Shape Round
Illumination No
Washable Yes
Dimensions LxWxH (in) 0.54 x 0.54 x 0.3
Dimensions LxWxH (mm) 13.8 x 13.8 x 7.5
