CPE-503

CPE-503

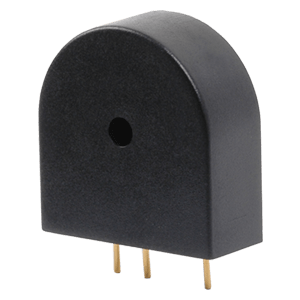

24 mm, 3~28 V, 72 dB, 3.2 kHz, Through Hole, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vdc
Rated Voltage 12
Sound Pressure (dB) 72
Mounting Style Through Hole
Curr. Consumption (mA) 7
Rated Frequency (Hz) 3200
Shape Rectangular
Dimensions LxWxH (mm) 25 x 24 x 10
Illumination No
Dimensions LxWxH (in) 0.98 x 0.94 x 0.39
Washable No
IP Rating No
