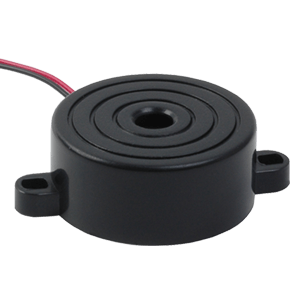

CPE-260H
32 mm, 8~18 V, 92 dB, 3.5 kHz, Panel Mount w/Wire Leads, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 92 |
|
| Mounting Style | Panel Mount |
|
| Curr. Consumption (mA) | 12 |
|
| Rated Frequency (Hz) | 3500 |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 32 x 32 x 13.5 |
|
| Dimensions LxWxH (in) | 1.26 x 1.26 x 0.53 |
|
| Washable | No |
|
