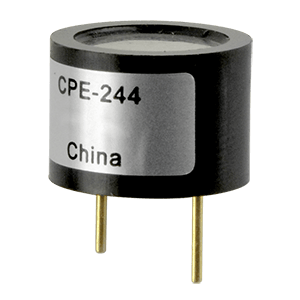

CPE-244
14 mm, 12 V, 80 dB, 5.0 kHz, IP67 Rated, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
The CPE-244 is a waterproof piezo indicator buzzer sporting a 14 mm diameter package. With a height of 10 mm, this waterproof buzzer features an IP67 rating and an SPL of 80 dB at 10 cm, making it ideal for a range of industrial and outdoor applications.
Features
| IP67 rated |
| Driving circuit included |
| Reflow solder compatible |
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 80 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 35 |
|
| Rated Frequency (Hz) | 5000 |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Shape | Round |
|
| Illumination | No |
|
| Dimensions LxWxH (mm) | 14 x 14 x 10 |
|
| Dimensions LxWxH (in) | 0.55 x 0.55 x 0.39 |
|
| IP Rating | IP67 |
|
| Washable | No |
|
