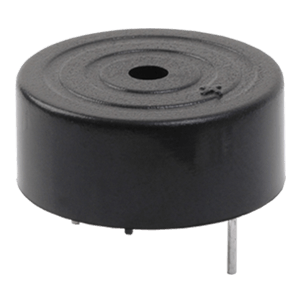

CPE-232H
23.3 mm, 5~18 V, 85 dB, 3.2 kHz, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 10 |
|
| Rated Frequency (Hz) | 3200 |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 23.3 x 23.3 x 10.2 |
|
| Dimensions LxWxH (in) | 0.92 x 0.92 x 0.4 |
|
| Washable | No |
|
