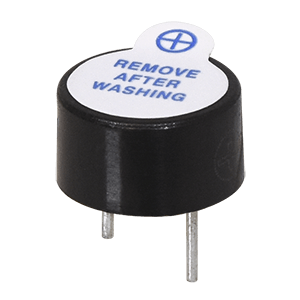

CMI-9605IC-0580T
9.6 mm, 5 Vdc, 80 dB, Through Hole, Driving Circuit, Magnetic Audio Indicator Buzzer
The CMI-9605IC-0580T series is a magnetic indicator buzzer with a built-in driving circuit that features a rated frequency of 2700 Hz at 5 Vdc and tight frequency tolerances of ±100 Hz. This narrow frequency range gives designers added frequency stability that is not affected by temperature or voltage, while providing more consistent tones and sounds in their given application. Offering an SPL of 80 dB at 10 cm, this magnetic indicator buzzer is a highly reliable solution for medical, smart home, and security applications that require tone consistency.
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Rated Voltage | 5 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 80 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 30 |
|
| Rated Frequency (Hz) | 2700 |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | Yes |
|
| Dimensions LxWxH (in) | 0.38 x 0.38 x 0.2 |
|
| Dimensions LxWxH (mm) | 9.6 x 9.6 x 5 |
|
