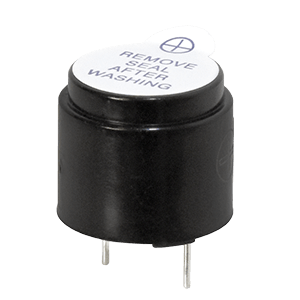

CMI-1614-0685T
16 mm, 6 Vdc, 85 dB, Through Hole, Driving Circuit, Magnetic Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Rated Voltage | 6 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 30 |
|
| Rated Frequency (Hz) | 2200 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 16 x 16 x 14 |
|
| Illumination | No |
|
| Dimensions LxWxH (in) | 0.63 x 0.63 x 0.16 |
|
| Washable | Yes |
|
| IP Rating | No |
|
